EVQPVF05K

Opis produktu

ItemSpecifications

Product NumberEVQPVF05K

Part NumberEVQPVF05K

Application example|1|

Type:EVQPV

Vehicle compatibleAvailable

External dimensions (LxW) (mm)6.0 x 6.1

External dimensions (H) (mm)5.0

Mounting Height (mm)5.0

Dimensions excluding push plate (mm)3.50

Operating directionTop push

Applicable solderingDIP

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 12V DC (Resistive load)

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)2.5

Travel TypeLong travel

Travel (mm)1.3

Operating Life100,000 cycles

Operating Temperature-30℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +40℃ (Taping)

Terminal typeRadial

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWithout

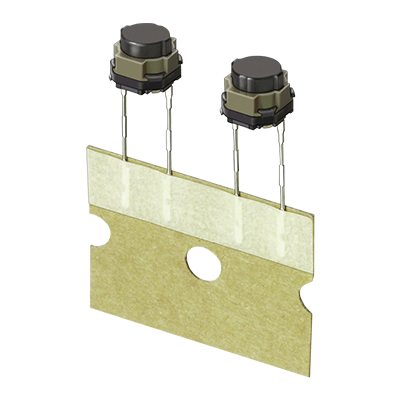

PackagingRadial Taping (Reel Pack)

Minimum Quantity/Packing Unit2,500 pcs.

Quantity/Carton25,000 pcs.
