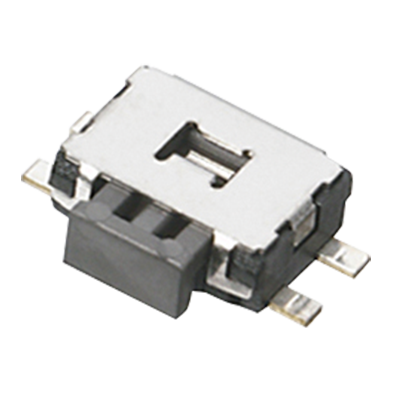

EVQPUM02K

Opis produktu

ItemSpecifications

Product NumberEVQPUM02K

Part NumberEVQPUM02K

Type:EVQPU

External dimensions (LxW) (mm)4.7 x 4.5

External dimensions (H) (mm)1.65

Mounting Height (mm)1.65

Dimensions excluding push plate (mm)3.50

Operating directionSide push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 12V DC (Resistive load)

Contact Resistance (mΩ max.)500

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeMiddle stroke Travel

Travel (mm)0.3

Operating Life100,000 cycles

Operating Temperature-20℃ to +70℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWith

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit4,000 pcs.

Quantity/Carton20,000 pcs.
