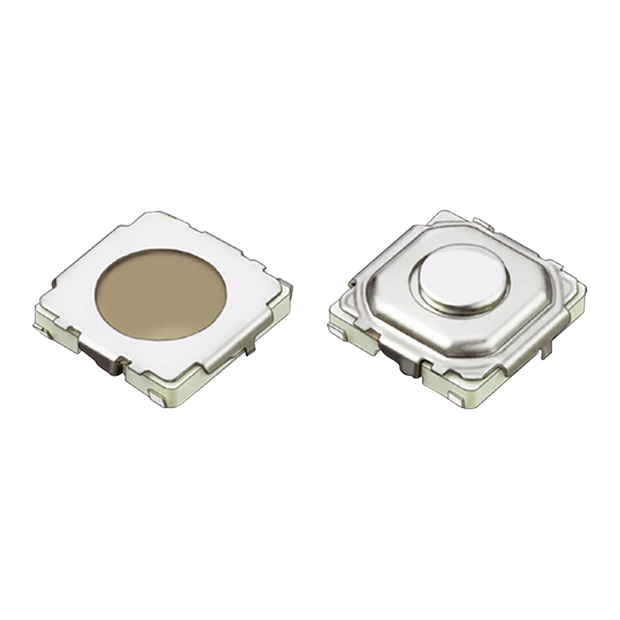

EVQPLDA15

Opis produktu

ItemSpecifications

Product NumberEVQPLDA15

Part NumberEVQPLDA15

Application example|1|

Type:EVQPL

Vehicle compatibleAvailable

External dimensions (LxW) (mm)4.9 x 4.9

External dimensions (H) (mm)1.5

Mounting Height (mm)1.5

Dimensions excluding push plate (mm)1.20

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)50

Insulation Resistance (MΩ min. at 100V DC)50

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing3ms max. (ON)
8ms max. (OFF)

Operating Force (N)1.0

Travel TypeShort Push Travel

Travel (mm)0.25

Operating Life500,000 cycles

Operating Temperature-20℃ to +70℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit5,000 pcs.

Quantity/Carton25,000 pcs.
