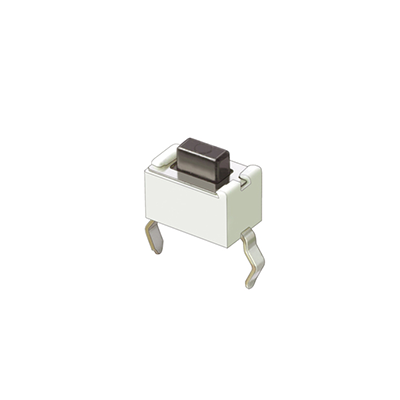

EVQPE504K

Opis produktu

ItemSpecifications

Product NumberEVQPE504K

Part NumberEVQPE504K

Type:EVQPE

External dimensions (LxW) (mm)6.0 x 3.5

External dimensions (H) (mm)4.3

Mounting Height (mm)4.3

Dimensions excluding push plate (mm)4.00

Operating directionTop push

Applicable solderingDIP

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 12V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeShort Push Travel

Travel (mm)0.25

Operating Life50,000 cycles

Operating Temperature-30℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)

Terminal typeBulk

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWithout

PackagingPolyethylene Bag (Bulk)

Minimum Quantity/Packing Unit1,000 pcs.

Quantity/Carton10,000 pcs.
