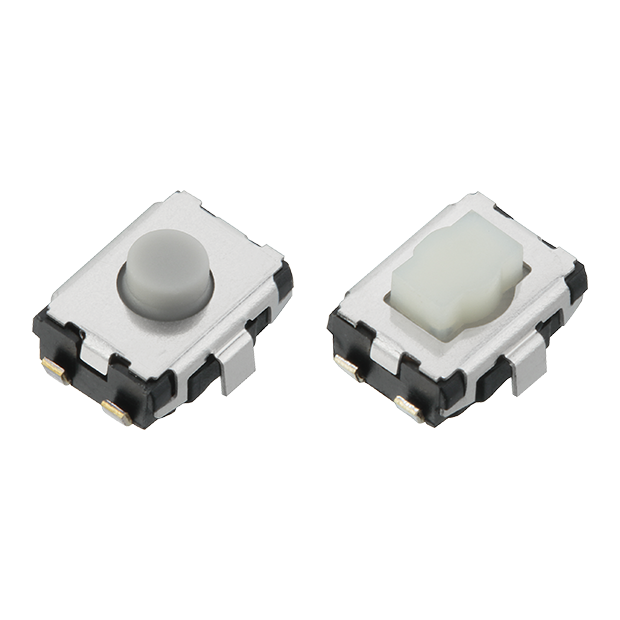

EVQP9P02W

Opis produktu

ItemSpecifications

Product NumberEVQP9P02W

Part NumberEVQP9P02W

Application example|1|

Type:EVQP9

Vehicle compatibleAvailable

External dimensions (LxW) (mm)4.7 x 3.5

External dimensions (H) (mm)2.5

Mounting Height (mm)2.5

Dimensions excluding push plate (mm)1.65

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)5.0

Travel TypeShort Push Travel

Travel (mm)0.25

Operating Life200,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Push Plate ColorWhite

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit4,000 pcs.

Quantity/Carton20,000 pcs.
