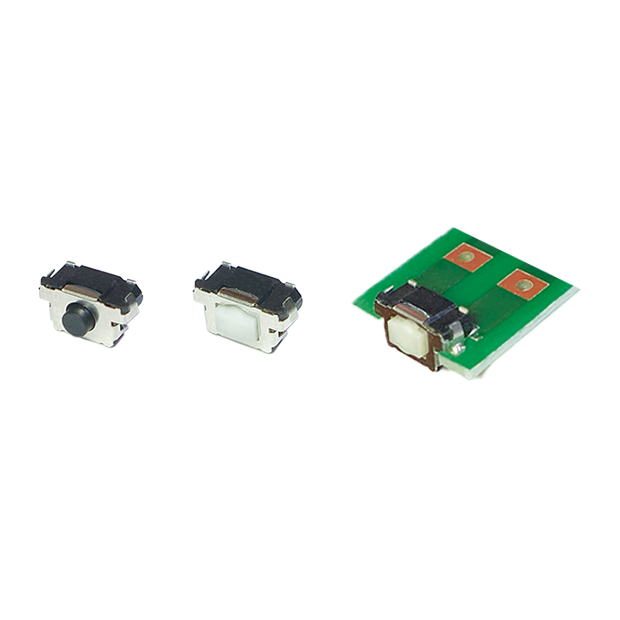

EVQP46B3M

Opis produktu

ItemSpecifications

Product NumberEVQP46B3M

Part NumberEVQP46B3M

Application example|1|

Type:EVQP4

Vehicle compatibleAvailable

External dimensions (LxW) (mm)6.2 x 3.0

External dimensions (H) (mm)3.50

Mounting Height (mm)1.35

Dimensions excluding push plate (mm)2.55

Operating directionSide push

Applicable solderingReflow

Mounting typeEdge Mount

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)3.5

Travel TypeShort Push Travel

Travel (mm)0.25

Push Strength50 N (for 1minute)

Operating Life200,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeFlat

Push Plate
(Actuator)With

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit2,500 pcs.

Quantity/Carton12,500 pcs.
