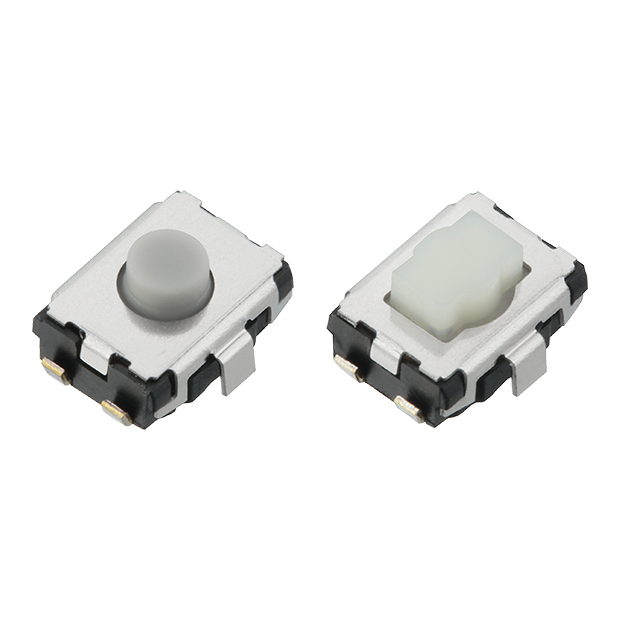

EVQP2F02K

Opis produktu

ItemSpecifications

Product NumberEVQP2F02K

Part NumberEVQP2F02K

Application example|1|

Type:EVQP2

Vehicle compatibleAvailable

External dimensions (LxW) (mm)4.7 x 3.5

External dimensions (H) (mm)2.5

Mounting Height (mm)2.5

Dimensions excluding push plate (mm)1.65

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)5.0

Travel TypeMiddle stroke Travel

Travel (mm)0.70

Operating Life200,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit4,000 pcs.

Quantity/Carton20,000 pcs.
