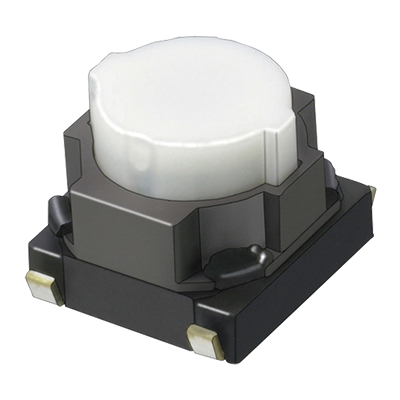

EVQP1905M

Opis produktu

ItemSpecifications

Product NumberEVQP1905M

Part NumberEVQP1905M

Application example|1|

Type:EVQP1

Vehicle compatibleAvailable

External dimensions (LxW) (mm)6.0 x 6.1

External dimensions (H) (mm)5.0

Mounting Height (mm)5.0

Dimensions excluding push plate (mm)3.50

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 12V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeLong travel

Travel (mm)1.3

Operating Life100,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit2,000 pcs.

Quantity/Carton10,000 pcs.
