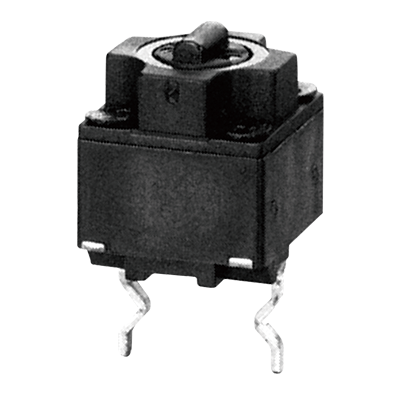

EVQP0D07K

Opis produktu

ItemSpecifications

Product NumberEVQP0D07K

Part NumberEVQP0D07K

Type:EVQP0

External dimensions (LxW) (mm)6.2 x 6.2

External dimensions (H) (mm)7.45

Mounting Height (mm)7.45

Dimensions excluding push plate (mm)6.70

Operating directionTop push

Applicable solderingDIP

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 30V DC (Resistive load)

Contact Resistance (mΩ max.)100 (1Ω max. after life test)

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage600 V AC (for 1minute)

Bouncing3ms以下 (ON)
8ms以下 (OFF)

Operating Force (N)1.30

Travel TypeOverstroke Travel

Travel (mm)Pre-travel: 0.5mm max., Over Travel: 0.2mm min.

Operating Life1,000,000 cycles

Operating Temperature-25℃～+65℃

Storage Temperature-45℃～+85℃

Terminal typeBulk

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWithout

PackagingPolyethylene Bag (Bulk)

Minimum Quantity/Packing Unit500 pcs.

Quantity/Carton10,000 pcs.
