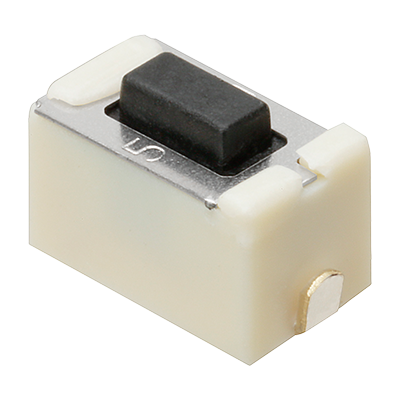

EVQ5PN04K

Opis produktu

ItemSpecifications

Product NumberEVQ5PN04K

Part NumberEVQ5PN04K

Type:EVQ5P

External dimensions (LxW) (mm)6.0 x 3.5

External dimensions (H) (mm)4.3

Mounting Height (mm)4.3

Dimensions excluding push plate (mm)4.00

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 50mA 12V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)2.4

Travel TypeShort Push Travel

Travel (mm)0.25

Operating Life30,000 cycles

Operating Temperature-30℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit2,500 pcs.

Quantity/Carton12,500 pcs.
