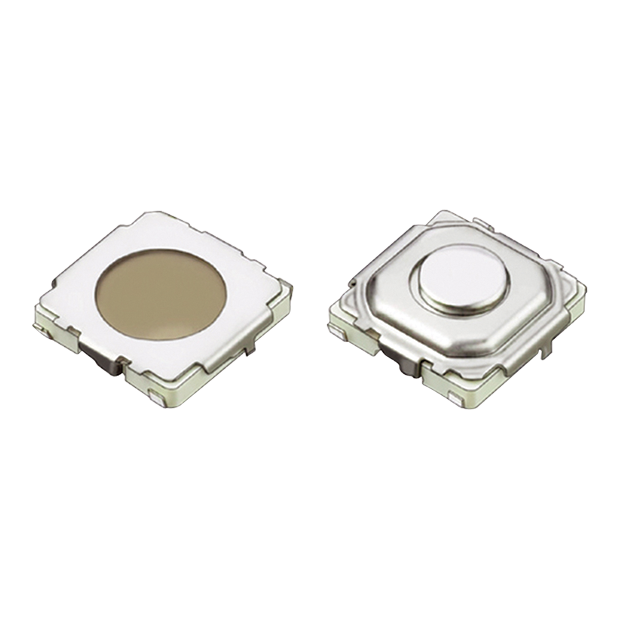

EVQ5PLA08

Opis produktu

ItemSpecifications

Product NumberEVQ5PLA08

Part NumberEVQ5PLA08

Type:EVQ5PL

External dimensions (LxW) (mm)4.9 x 4.9

External dimensions (H) (mm)0.8

Mounting Height (mm)0.8

Dimensions excluding push plate (mm)0.80

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)50

Insulation Resistance (MΩ min. at 100V DC)50

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing3ms max. (ON)
8ms max. (OFF)

Operating Force (N)3.5

Travel TypeShort Push Travel

Travel (mm)0.25

Operating Life200,000 cycles

Operating Temperature-20℃ to +70℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeJ-bent

Push Plate
(Actuator)Without

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit5,000 pcs.

Quantity/Carton25,000 pcs.
