Waga produktu: 1g
Minimalna ilość w zamówieniu: 10000
Ilość produktów w opakowaniu jednostkowym: 10000
ItemSpecifications

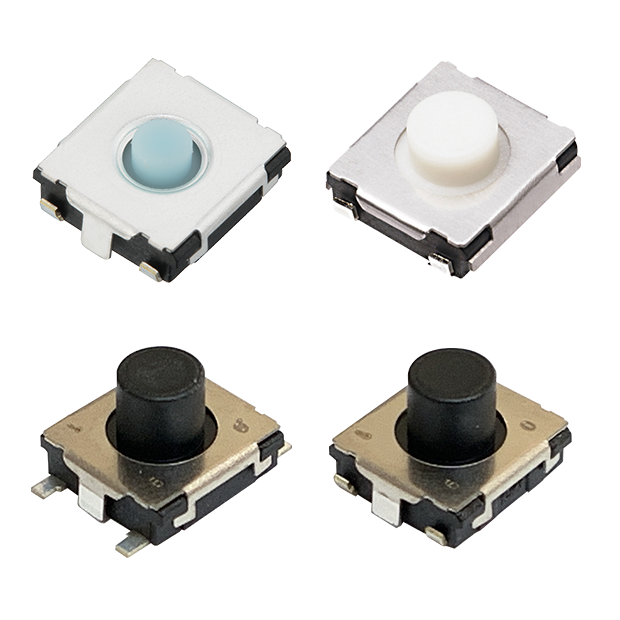

Product NumberEVPBT5C4A000
Part NumberEVPBT5C4A000
Type:EVPBT
External dimensions (LxW) (mm)6.5 x 6.0
External dimensions (H) (mm)4.3
Mounting Height (mm)4.3
Dimensions excluding push plate (mm)1.80
Operating directionTop push
Applicable solderingReflow
Mounting typeSMD
TypeSnap action / Push-on type SPST
Rating10μA 2V DC to 20mA 15V DC (Resistive load)
Contact Resistance (mΩ max.)100
Insulation Resistance (MΩ min. at 100V DC)100
Dielectric Withstanding Voltage250 V AC (for 1minute)
Bouncing10ms max. (ON, OFF)
Operating Force (N)1.6
Travel TypeShort Push Travel
Travel (mm)0.25
Operating Life1,000,000 cycles
Operating Temperature-40℃ to +85℃
Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)
Terminal typeJ-bent
Push Plate
(Actuator)With
Push Plate ColorBlack
Ground TerminalWithout
BossWithout
PackagingEmbossed Taping (Reel Pack)
Minimum Quantity/Packing Unit2,000 pcs.
Quantity/Carton10,000 pcs.
