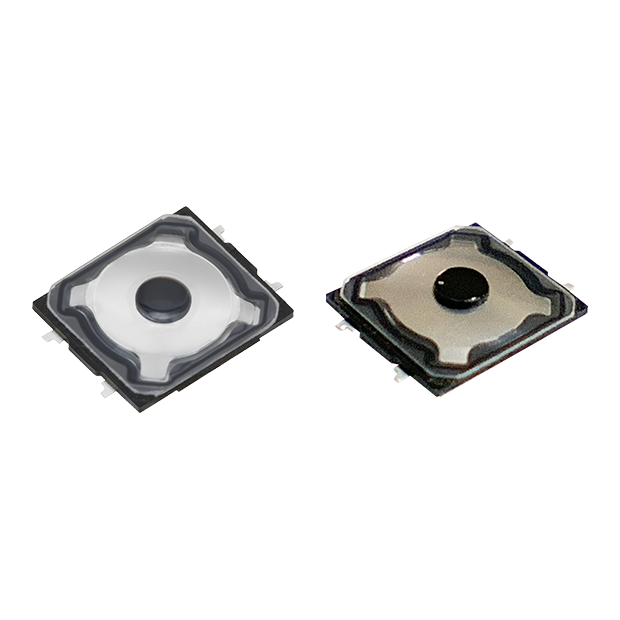

EVPBK2A6B000

Opis produktu

ItemSpecifications

Product NumberEVPBK2A6B000

Part NumberEVPBK2A6B000

Type:EVPBK

External dimensions (LxW) (mm)4.9 x 4.0

External dimensions (H) (mm)0.70

Mounting Height (mm)0.70

Operating directionTop push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)500

Insulation Resistance (MΩ min. at 100V DC)50

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.65

Travel TypeShort Push Travel

Travel (mm)0.20

Operating Life1,000,000 cycles

Protective constructionIP67

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeStraight

Push Plate
(Actuator)With

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit10,000 pcs.

Quantity/Carton50,000 pcs.
