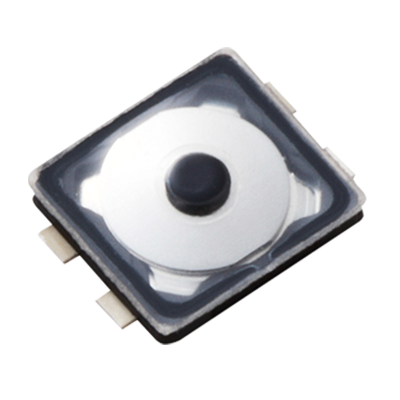

EVPAXBA1A

Opis produktu

ItemSpecifications

Product NumberEVPAXBA1A

Part NumberEVPAXBA1A

Type:EVPAX

External dimensions (LxW) (mm)3.0 x 2.6

External dimensions (H) (mm)0.7

Mounting Height (mm)0.7

Dimensions excluding push plate (mm)0.245

Operating directionDouble action

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPDT

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)500

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing3ms max. (ON)
20ms max. (OFF)

Operating Force (N)0.7 (1st Action), 2.0 (2nd Action)

Travel TypeShort Push Travel

Travel (mm)0.07 (1st Action), 0.16 (2nd Action)

Push Strength30 N (15 seconds)

Operating Life100,000 cycles

Operating Temperature-20℃ to +70℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeStraight

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit8,000 pcs.

Quantity/Carton40,000 pcs.
