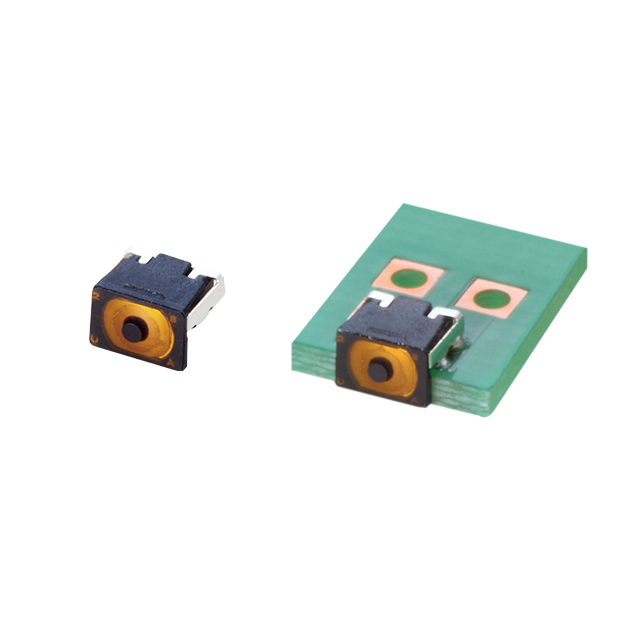

EVPAVAA1A

Opis produktu

ItemSpecifications

Product NumberEVPAVAA1A

Part NumberEVPAVAA1A

Type:EVPAV

External dimensions (LxW) (mm)2.8 x 2.65

External dimensions (H) (mm)1.95

Mounting Height (mm)0.975

Dimensions excluding push plate (mm)2.30

Operating directionSide push

Applicable solderingReflow

Mounting typeEdge Mount

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)500

Insulation Resistance (MΩ min. at 100V DC)50

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeShort Push Travel

Travel (mm)0.13

Push Strength50 N (15 seconds)

Operating Life300,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeFlat

Push Plate
(Actuator)With

Ground TerminalWithout

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit8,000 pcs.

Quantity/Carton40,000 pcs.
