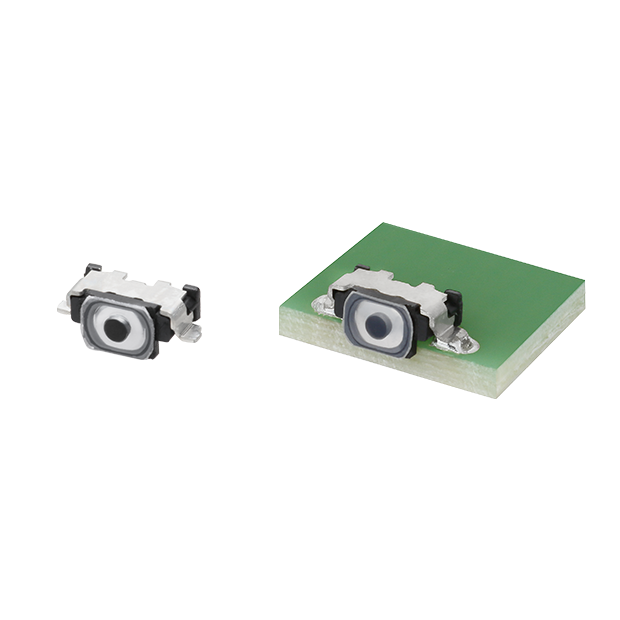

EVPAT2L1B000

Opis produktu

ItemSpecifications

Product NumberEVPAT2L1B000

Part NumberEVPAT2L1B000

Type:EVPAT

External dimensions (LxW) (mm)3.4 x 1.9

External dimensions (H) (mm)1.65

The length from PCB edge to tip of Push plate (mm)0.560

Mounting Height (mm)1.105

Dimensions excluding push plate (mm)1.73

Operating directionSide push

Applicable solderingReflow

Mounting typeEdge Mount

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)500

Insulation Resistance (MΩ min. at 100V DC)50

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeShort Push Travel

Travel (mm)0.11

Operating Life500,000 cycles

Protective constructionIP67

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeInsert

Push Plate
(Actuator)With

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit10,000 pcs.

Quantity/Carton50,000 pcs.
