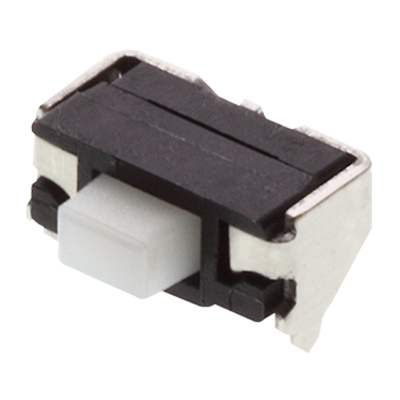

EVPAKE31A

Opis produktu

ItemSpecifications

Product NumberEVPAKE31A

Part NumberEVPAKE31A

Type:EVPAK

External dimensions (LxW) (mm)3.9 x 2.9

External dimensions (H) (mm)1.6

Mounting Height (mm)1.6

Dimensions excluding push plate (mm)2.05

Operating directionSide push

Applicable solderingReflow

Mounting typeSMD

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)100

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)1.6

Travel TypeShort Push Travel

Travel (mm)0.12

Operating Life500,000 cycles

Protective constructionIP67

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +90℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeInsert

Push Plate
(Actuator)With

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit5,000 pcs.

Quantity/Carton25,000 pcs.
