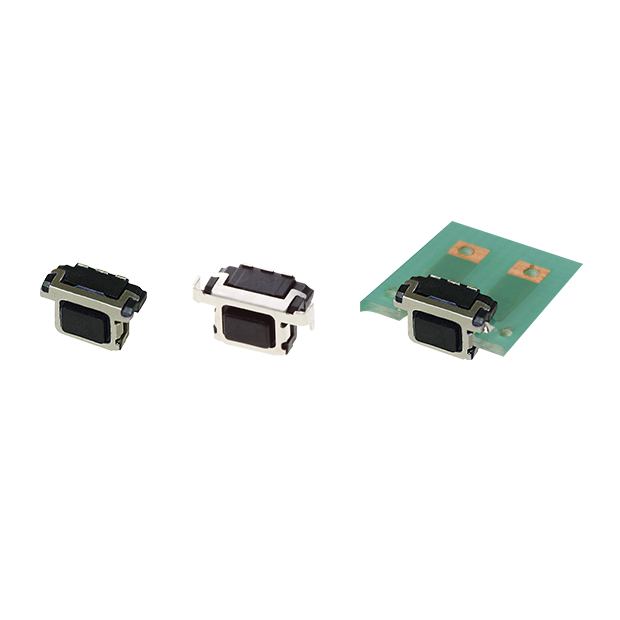

EVPAEDB2A

Opis produktu

ItemSpecifications

Product NumberEVPAEDB2A

Part NumberEVPAEDB2A

Application example|1|

Type:EVPAE

Vehicle compatibleAvailable

External dimensions (LxW) (mm)4.5 x 2.6

External dimensions (H) (mm)2.90

Mounting Height (mm)0.95

Dimensions excluding push plate (mm)2.20

Operating directionSide push

Applicable solderingReflow

Mounting typeEdge Mount

TypeSnap action / Push-on type SPST

Rating10μA 2V DC to 20mA 15V DC (Resistive load)

Contact Resistance (mΩ max.)1,000

Insulation Resistance (MΩ min. at 100V DC)100

Dielectric Withstanding Voltage250 V AC (for 1minute)

Bouncing10ms max. (ON, OFF)

Operating Force (N)3.0

Travel TypeShort Push Travel

Travel (mm)0.15

Operating Life200,000 cycles

Operating Temperature-40℃ to +85℃

Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)

Terminal typeFlat

Push Plate
(Actuator)With

Push Plate ColorBlack

Ground TerminalWith

BossWithout

PackagingEmbossed Taping (Reel Pack)

Minimum Quantity/Packing Unit3,500 pcs.

Quantity/Carton17,500 pcs.
