Waga produktu: 1g
Minimalna ilość w zamówieniu: 1000
Ilość produktów w opakowaniu jednostkowym: 1000
| Item | Specifications |
|---|---|

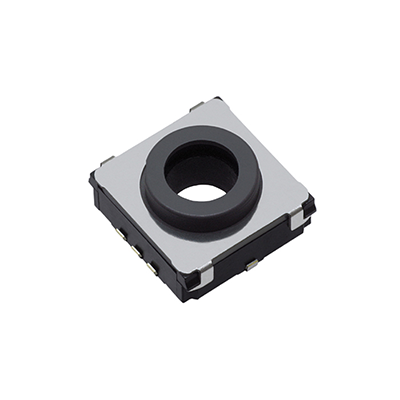

| Product Number | EVPADK04K |
| Part Number | EVPADK04K |
| Application example | |1| |
| Type: | EVPAD |
| Vehicle compatible | Available |
| External dimensions (LxW) (mm) | 9.8 x 9.8 |
| External dimensions (H) (mm) | 4.70 |
| Mounting Height (mm) | 4.70 |
| Dimensions excluding push plate (mm) | 3.20 |
| Operating direction | Top push |
| Applicable soldering | Reflow |
| Mounting type | SMD |
| Type | Snap action / Push-on type SPST |
| Rating | 10μA 2V DC to 50mA 12V DC (Resistive load) |
| Insulation Resistance (MΩ min. at 100V DC) | 100 |
| Dielectric Withstanding Voltage | 250 V AC (for 1minute) |
| Bouncing | 10ms max. (ON, OFF) |
| Operating Force (N) | 4.0 |
| Travel Type | Long travel |
| Travel (mm) | 1.0 |
| Operating Life | 100,000 cycles |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ (Bulk) -20℃ to +60℃ (Taping) |
| Terminal type | J-bent |
| Push Plate (Actuator) |
With |
| Push Plate Color | Black |
| Ground Terminal | Without |
| Boss | Without |
| Packaging | Embossed Taping (Reel Pack) |
| Minimum Quantity/Packing Unit | 1,000 pcs. |
| Quantity/Carton | 5,000 pcs. |
